概述

Cesium的3D Tiles是一种用于流式传输和渲染大规模3D地理空间数据的开放规范。本文详细解析Cesium引擎如何加载、解析和渲染3D Tiles数据。

核心文件路径

js
packages/engine/Source/Scene/Cesium3DTileset.js - 瓦片集管理
packages/engine/Source/Scene/Cesium3DTile.js - 单个瓦片
packages/engine/Source/Scene/Cesium3DTileContent.js - 瓦片内容基类
packages/engine/Source/Scene/Batched3DModel3DTileContent.js - B3DM瓦片内容
packages/engine/Source/Scene/Instanced3DModel3DTileContent.js - I3DM瓦片内容
packages/engine/Source/Scene/PointCloud3DTileContent.js - PNTS瓦片内容
packages/engine/Source/Scene/Composite3DTileContent.js - 复合瓦片内容
packages/engine/Source/Scene/Model.js - 模型处理
packages/engine/Source/Scene/ModelDrawCommand.js - 模型绘制命令

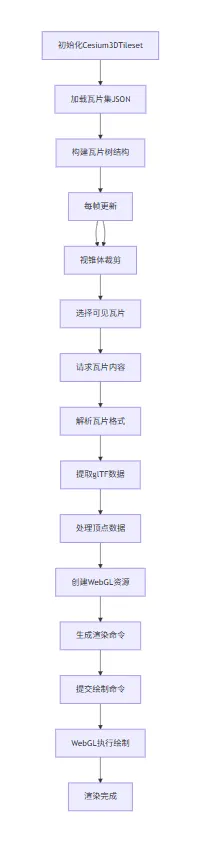

完整流程图

瓦片加载流程

瓦片集初始化

Cesium3DTileset是整个瓦片集的容器，负责管理瓦片树结构和调度加载请求。

Cesium3DTileset.js

js
Cesium3DTileset.prototype.update = function(frameState) {
  // ...
  this._requestedTiles.length = 0;
  // 获取可见瓦片
  this._selectedTiles.length = 0;
  this._selectedTilesToStyle.length = 0;
  if (defined(this._loadTimestamp)) {
    processTiles(this, frameState);
  }
  // ...
};

function processTiles(tileset, frameState) {
  // ...
  // 视锥体裁剪和瓦片选择
  traverseAndSelect(tileset, frameState);
  // 更新瓦片几何误差、优先级
  updateTiles(tileset, frameState);
  // 发送网络请求，加载未加载的瓦片
  requestTiles(tileset, frameState);
  // ...
}

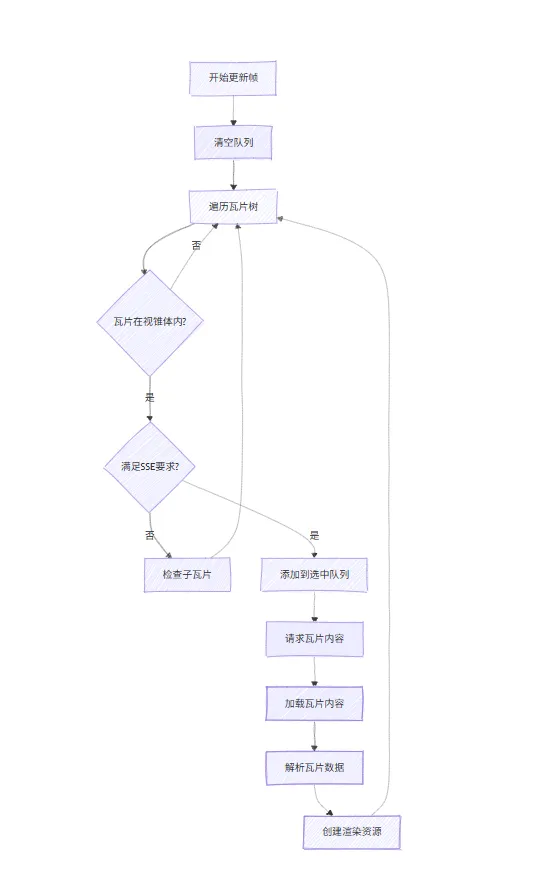

瓦片选择流程图

瓦片请求与加载

Cesium3DTileset.js

js
function requestTiles(tileset, frameState) {
  // 对请求队列排序
  tileset._requestedTiles.sort(sortRequestByPriority);

  for (let i = 0; i < tileset._requestedTiles.length; ++i) {
    const tile = tileset._requestedTiles[i];
    // 触发瓦片内容加载
    tileset._tileResource.retryAttempts = tileset._retryAttempts;
    tile.requestContent(tile, tileset, tileset._tileResource);
  }
}

Cesium3DTile.prototype.requestContent = function() {
  // ...
  // 创建请求，加载瓦片二进制数据
  const request = new Request({
    throttle: false,
    throttleByServer: true,
    type: RequestType.TILES3D,
    priorityFunction: createPriorityFunction(this),
    serverKey: serverKey
  });

  // 发起请求
  const promise = requestResource.fetchArrayBuffer(request);

  // 处理请求结果
  const contentPromise = promise.then((arrayBuffer) => {
    // 创建瓦片内容对象
    const content = createContent(this, arrayBuffer, contentFactory);
    this._content = content;
    this.contentState = Cesium3DTileContentState.PROCESSING;
    // 解析瓦片内容
    return content.process(this._tileset.mainThreadOrWorkerWorkerScheduler);
  });
  // ...
};

瓦片内容解析

B3DM格式解析

Batched 3D Model (B3DM) 是最常用的3D Tiles格式，包含多个批处理的3D模型。

Batched3DModel3DTileContent.js

js
function Batched3DModel3DTileContent(
  tileset,
  tile,
  resource,
  arrayBuffer,
  byteOffset
) {
  // ...
  // 解析二进制头部
  const headerView = new DataView(arrayBuffer);
  const byteLength = headerView.getUint32(byteOffset, true);
  byteOffset += 4;

  // 解析glTF标志和版本
  const gltfFormat = headerView.getUint32(byteOffset, true);
  // ...

  // 提取特性表
  const featureTableJsonByteLength = headerView.getUint32(byteOffset, true);
  byteOffset += 4;
  // ...

  // 解析特性表数据
  const featureTableBinaryByteLength = headerView.getUint32(byteOffset, true);
  byteOffset += 4;
  const batchTableJsonByteLength = headerView.getUint32(byteOffset, true);
  byteOffset += 4;
  // ...

  // 提取glTF数据
  const gltfByteLength = byteLength - byteOffset;
  let gltfView = new Uint8Array(arrayBuffer, byteOffset, gltfByteLength);
  // ...

  // 创建glTF模型
  const model = new Model({
    gltf: gltfView,
    // ...其他参数
  });

  // 存储解析结果
  this._model = model;
  this._batchTable = batchTable;
  // ...
}

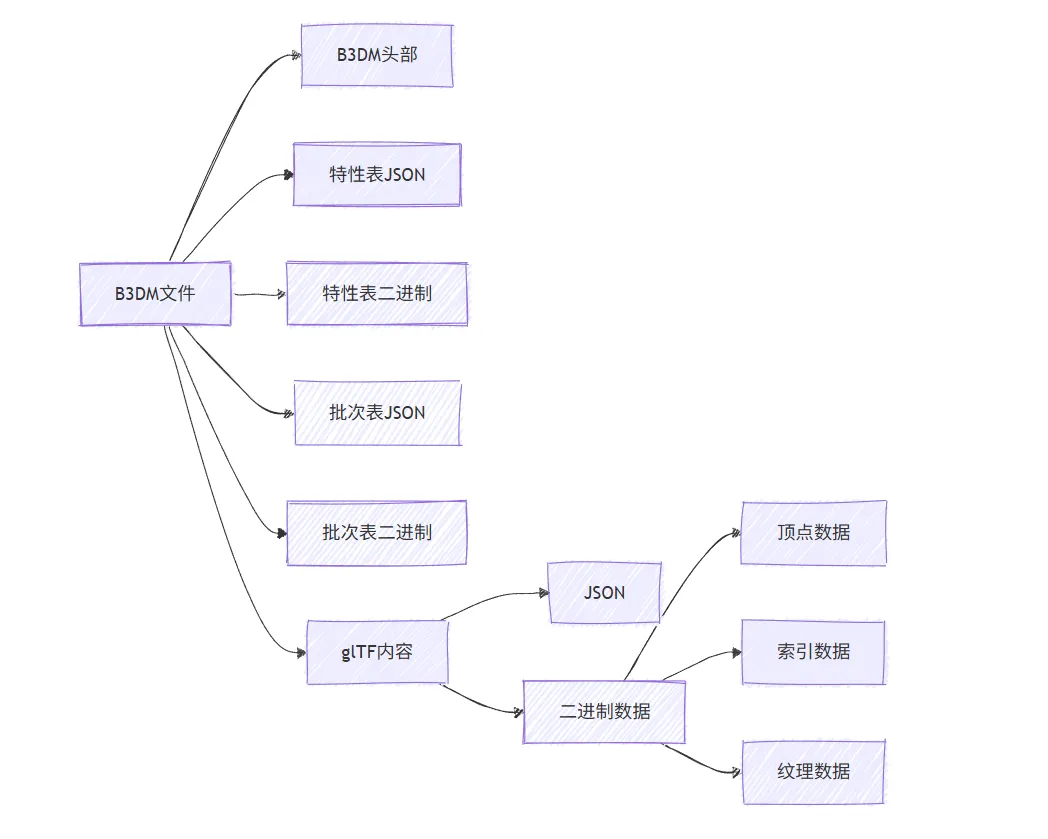

B3DM结构图

glTF模型解析

Model类负责解析glTF数据，提取顶点属性并创建WebGL资源。 Model.js

js
Model.prototype.initialize = function(arrayBuffer) {
  // ...
  // 解析glTF JSON
  let gltf;
  if (defined(arrayBuffer)) {
    gltf = parseGLTF(arrayBuffer);
  }
  // ...

  // 处理顶点缓冲区
  ForEach.mesh(gltf, (mesh) => {
    ForEach.meshPrimitive(mesh, (primitive) => {
      // 获取顶点索引
      const indices = accessorId(primitive.indices);
      // 获取顶点位置
      const positionId = primitive.attributes.POSITION;
      // 获取法线数据
      const normalId = primitive.attributes.NORMAL;
      // 获取纹理坐标
      const texcoordId = primitive.attributes.TEXCOORD_0;
      // ...
    });
  });
  // ...
};

创建WebGL缓冲区

Model.js

js
function createBuffers(model, frameState) {
  const loadResources = model._loadResources;
  const bufferLoads = loadResources.bufferLoads;

  for (const bufferLoad of bufferLoads) {
    // 创建WebGL缓冲区
    const buffer = Buffer.createVertexBuffer({
      context: frameState.context,
      typedArray: bufferLoad.typedArray,
      usage: BufferUsage.STATIC_DRAW
    });

    // 保存缓冲区引用
    bufferLoad.vertexBuffer = buffer;
  }
}

顶点数组对象(VAO)创建

js
function createVertexArrays(model, frameState) {
  // ...
  for (const primitive of primitivesByteLength) {
    // 获取顶点属性描述
    const attributes = primitive.attributes;
    const vaAttributes = [];

    // 处理每个顶点属性(位置、法线、纹理坐标等)
    for (const attribute of attributes) {
      const accessor = accessors[attribute.accessor];
      const bufferLoad = bufferLoads[accessor.bufferView];

      // 创建顶点属性描述
      vaAttributes.push({
        index: attribute.index,
        vertexBuffer: bufferLoad.vertexBuffer,
        componentsPerAttribute: accessor.componentsPerAttribute,
        componentDatatype: accessor.componentDatatype,
        normalize: attribute.normalize,
        offsetInBytes: accessor.byteOffset + attribute.byteOffset,
        strideInBytes: accessor.byteStride
      });
    }

    // 创建WebGL顶点数组对象
    const va = new VertexArray({
      context: frameState.context,
      attributes: vaAttributes,
      indexBuffer: defined(primitive.indices) ?
        indexBufferLoads[primitive.indices].indexBuffer : undefined
    });

    // 保存VAO引用
    primitive.va = va;
  }
}

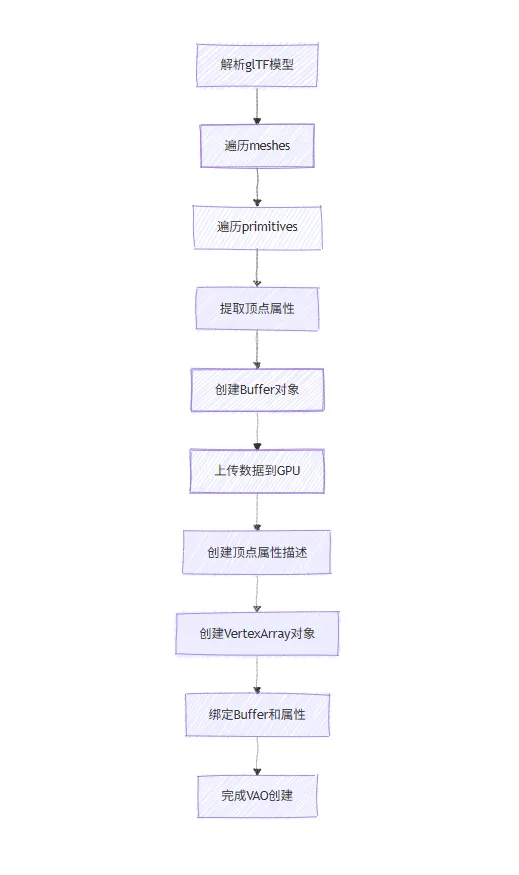

顶点解析流程图

渲染命令创建与执行

创建绘制命令 ModelDrawCommand.js

js
ModelDrawCommand.prototype.buildCommand = function(
  model,
  context,
  frameState,
  modelMatrix,
  runtimeNode,
  lightColor
) {
  // ...
  // 创建绘制命令
  const command = new DrawCommand({
    boundingVolume: new BoundingSphere(), // 模型的包围盒
    modelMatrix: modelMatrix,             // 模型变换矩阵
    primitiveType: primitive.primitiveType, // 图元类型(如三角形)
    vertexArray: primitive.va,            // 顶点数组对象
    count: primitive.count,               // 索引或顶点数量
    shaderProgram: shaderProgram,         // 着色器程序
    uniformMap: uniformMap,               // uniform变量映射
    renderState: renderState,             // 渲染状态
    pass: pass                            // 渲染通道
  });

  return command;
};

绘制命令执行 DrawCommand.js

js
DrawCommand.prototype.execute = function(context, passState) {
  // ...
  // 绑定着色器程序
  shaderProgram._bind();

  // 设置Uniform变量
  let uniform;
  let uniformId;

  for (uniformId in uniforms) {
    if (uniforms.hasOwnProperty(uniformId)) {
      uniform = uniforms[uniformId];
      uniform._set();
    }
  }

  // 绑定顶点数组
  vertexArray._bind();

  // 应用渲染状态
  context._applyRenderState(renderState);

  // 绘制图元
  if (defined(this.count)) {
    if (defined(instanceCount)) {
      // 实例化绘制
      context._gl.drawElementsInstanced(
        this.primitiveType,
        this.count,
        indexDatatype,
        offset,
        instanceCount
      );
    } else {
      // 普通索引绘制
      context._gl.drawElements(
        this.primitiveType,
        this.count,
        indexDatatype,
        offset
      );
    }
  } else {
    // 数组绘制
    context._gl.drawArrays(this.primitiveType, offset, vertexCount);
  }

  // 解除绑定
  vertexArray._unBind();
  shaderProgram._unBind();
};

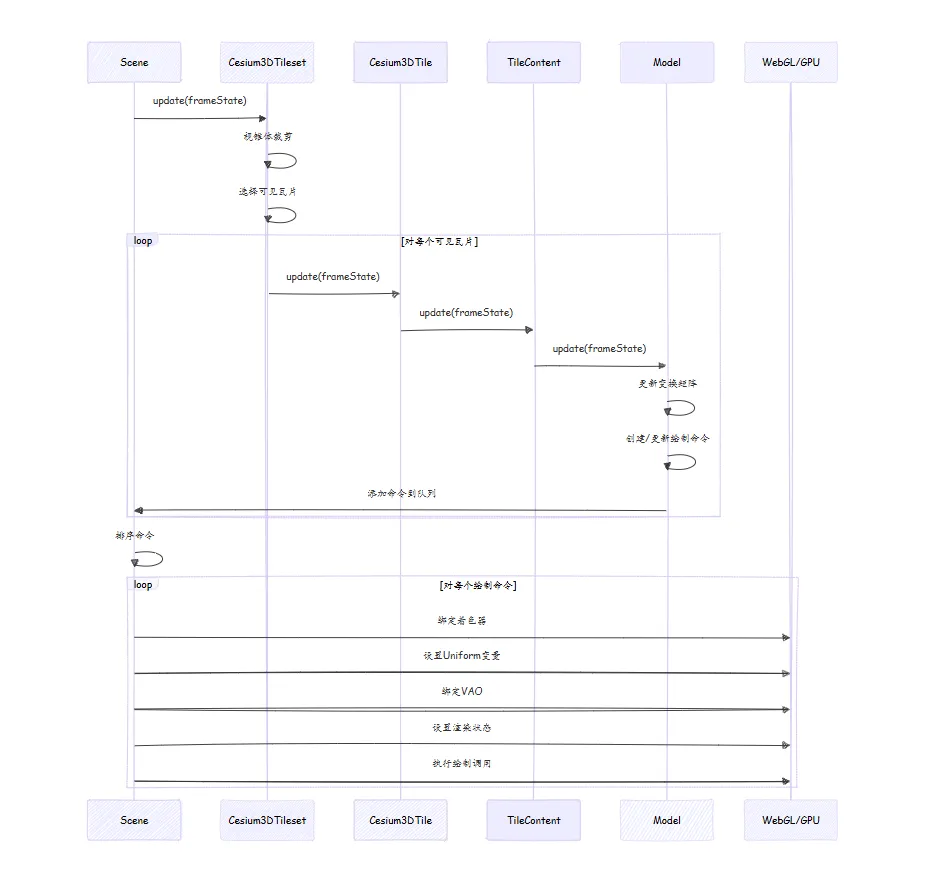

渲染流程图

WebGL关键接口

缓冲区创建和数据上传

Buffer.js

js
function Buffer(options) {
  // ...
  this._buffer = context._gl.createBuffer();

  // 绑定缓冲区
  const target = this._target;
  const gl = context._gl;
  gl.bindBuffer(target, this._buffer);

  // 上传数据到GPU
  gl.bufferData(target, typedArray, usage);

  // 跟踪显存使用
  this._sizeInBytes = sizeInBytes;

  // 解除绑定
  gl.bindBuffer(target, null);
}

顶点数组对象(VAO)创建

VertexArray.js

js
function VertexArray(options) {
  // ...
  const va = gl.createVertexArray();
  gl.bindVertexArray(va);

  // 绑定顶点属性
  for (const attribute of attributes) {
    // 绑定顶点缓冲区
    gl.bindBuffer(gl.ARRAY_BUFFER, attribute.vertexBuffer._buffer);

    // 启用顶点属性
    gl.enableVertexAttribArray(attribute.index);

    // 定义顶点属性格式
    gl.vertexAttribPointer(
      attribute.index,                // 属性位置
      attribute.componentsPerAttribute, // 每个顶点的组件数量(如位置=3，法线=3)
      attribute.componentDatatype,    // 数据类型(如FLOAT)
      attribute.normalize,            // 是否归一化
      attribute.strideInBytes,        // 步长
      attribute.offsetInBytes         // 偏移量
    );

    // 设置顶点属性除数(用于实例化渲染)
    if (defined(attribute.instanceDivisor)) {
      gl.vertexAttribDivisor(attribute.index, attribute.instanceDivisor);
    }
  }

  // 绑定索引缓冲区(如果有)
  if (defined(indexBuffer)) {
    gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, indexBuffer._buffer);
  }

  // 解除VAO绑定
  gl.bindVertexArray(null);

  this._va = va;
}

着色器程序创建

ShaderProgram.js

js
function ShaderProgram(options) {
  // ...
  // 创建顶点着色器
  const vertexShader = gl.createShader(gl.VERTEX_SHADER);
  gl.shaderSource(vertexShader, vertexShaderSource);
  gl.compileShader(vertexShader);

  // 创建片元着色器
  const fragmentShader = gl.createShader(gl.FRAGMENT_SHADER);
  gl.shaderSource(fragmentShader, fragmentShaderSource);
  gl.compileShader(fragmentShader);

  // 创建着色器程序
  const program = gl.createProgram();
  gl.attachShader(program, vertexShader);
  gl.attachShader(program, fragmentShader);

  // 绑定属性位置
  for (const attributeLocation in attributeLocations) {
    gl.bindAttribLocation(
      program,
      attributeLocations[attributeLocation],
      attributeLocation
    );
  }

  // 链接程序
  gl.linkProgram(program);

  // 检查编译和链接状态
  // ...

  // 获取Uniform位置
  const uniformLocations = {};
  const numberOfUniforms = gl.getProgramParameter(program, gl.ACTIVE_UNIFORMS);
  for (let i = 0; i < numberOfUniforms; ++i) {
    const activeUniform = gl.getActiveUniform(program, i);
    uniformLocations[activeUniform.name] = gl.getUniformLocation(
      program,
      activeUniform.name
    );
  }

  this._program = program;
  this._uniformLocations = uniformLocations;
}

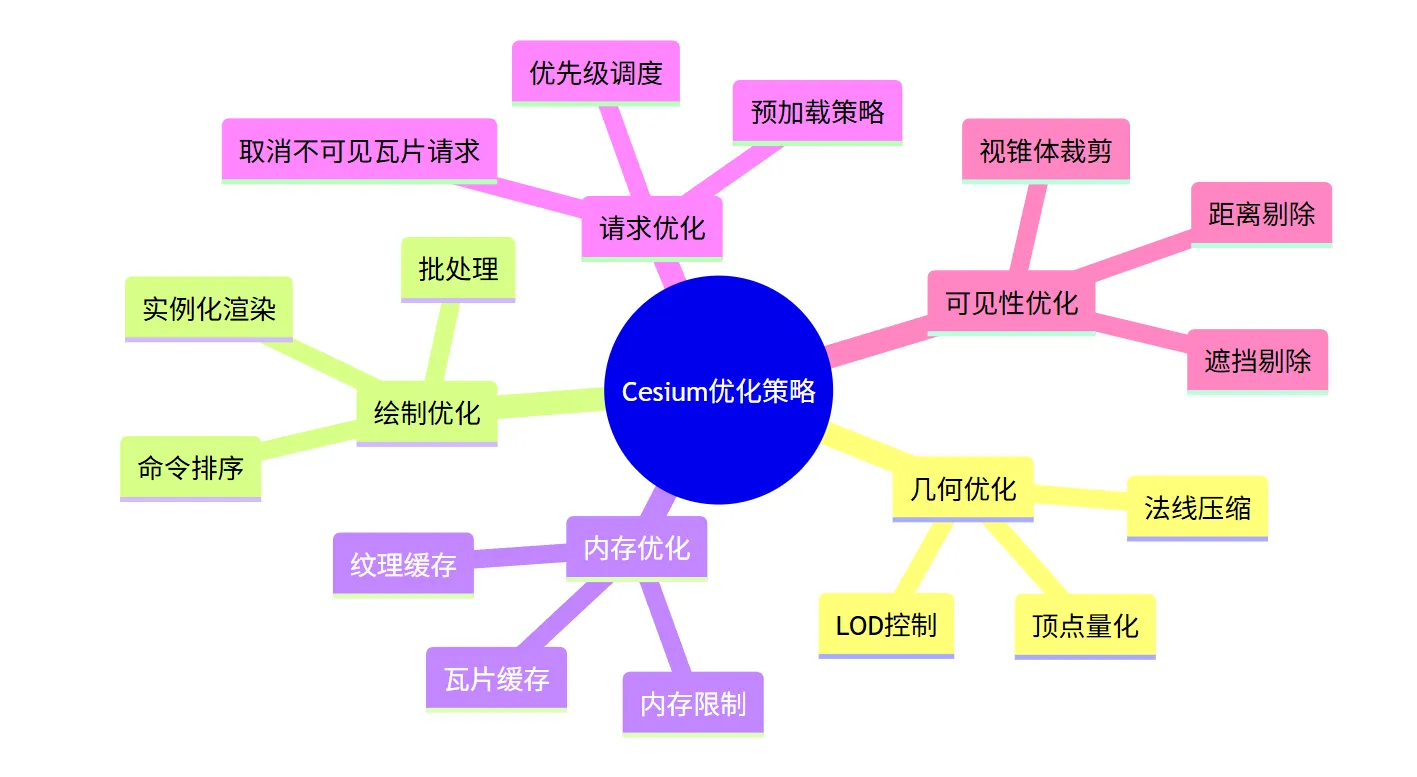

Cesium 中性能优化策略

几何数据优化

法线压缩

js
AttributeCompression.octEncodeInRange = function(normal, rangeMax) {
  // 法线压缩到8位或16位
  const x = normal.x;
  const y = normal.y;
  const z = normal.z;

  const octX = (x >= 0.0 ? 1.0 : -1.0) * (1.0 - Math.abs(y / (Math.abs(x) + Math.abs(y) + Math.abs(z))));
  const octY = (y >= 0.0 ? 1.0 : -1.0) * (1.0 - Math.abs(z / (Math.abs(x) + Math.abs(y) + Math.abs(z))));

  // 从[-1,1]映射到[0,rangeMax]
  return new Cartesian2(
    AttributeCompression.scaleToSnorm(octX, rangeMax),
    AttributeCompression.scaleToSnorm(octY, rangeMax)
  );
};

批次处理优化

js
function createFeatures(content) {
  // ...
  // 分批处理，减少绘制调用
  // batchTable中包含多个实体的元数据
  const featuresLength = content._featuresLength;
  for (let i = 0; i < featuresLength; ++i) {
    // 创建每个批次的特性对象
    content._features.push(new Cesium3DTileFeature(content, i));
  }
}

缓存优化

js
Cesium3DTilesetCache.prototype.add = function(tile) {
  // ...
  // LRU缓存策略
  if (this._list.length > this._maximumMemoryUsageInBytes) {
    // 淘汰最久未使用的瓦片
    this.unloadTile(this._last);
  }

  // 将瓦片添加到缓存头部
  tile._cacheNode = this._list.add(tile);
};

GPU实例化优化

js
function createFeatures(content) {
  // ...
  // 实例化渲染优化，一次绘制调用渲染多个实例
  const instancesLength = content._instancesLength;

  // 创建实例化属性缓冲区
  const instancedAttributes = [];
  instancedAttributes.push({
    index: attributeLocation,
    vertexBuffer: createInstancedBuffer(/* 实例位置数据 */),
    componentsPerAttribute: 3,
    instanceDivisor: 1 // 每个实例一条数据
  });

  // 添加到顶点数组对象
  for (const attribute of instancedAttributes) {
    vertexArray.addAttribute(attribute);
  }
}

视锥体裁剪优化

js
function updateVisibility(tileset, frameState) {
  const cullingVolume = frameState.cullingVolume;
  const cameraPosition = frameState.camera.positionWC;

  // 遍历瓦片树
  const stack = tileset._stack;
  stack.push(tileset._root);

  while (stack.length > 0) {
    const tile = stack.pop();

    // 计算与视锥体的关系
    const boundingVolume = tile.boundingVolume;
    const visibility = boundingVolume.computeVisibility(cullingVolume);

    // 完全不可见的瓦片裁剪掉
    if (visibility === CullingVolume.MASK_OUTSIDE) {
      continue;
    }

    // 距离计算
    const distanceToCamera = tile._distanceToCamera =
      tile.distanceToTile(frameState);

    // 处理可见瓦片
    // ...
  }
}
